Ambulance (Korea Standard)

"Saving seconds, saving lives."

Hotline: +82 705 033 9691 / +82 10 8960 0001

Email: leekyo7915@daum.net

Kakao ID: kyo8688

The ergonomic design was created to provide comfort and first aid to patients.
(0 to -100PA. If necessary, up to -200 is available. 1 to 7 step negative pressure adjustable.)

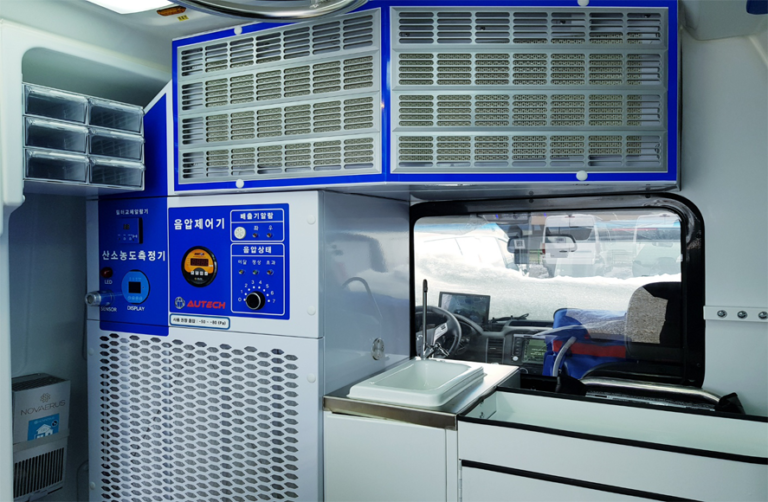

Includes a negative pressure air conditioner and outlet with HEPA H14 grade filter.
The patient area is sealed with special sealing materials and AUTECH’s proprietary technology (full isolation from the driver’s cab and the outside).
Installation of various lighting and alarm devices related to negative pressure.
Fast communication with intercom between the driver’s cabin and the patient room.
12V DC outlet for emergency medical device installation and inverter installation for AC220V power supply.
Convenient high-performance aspirator for providing initial first aid.
Navigator system and interlocking with the rear camera inside the patient area.

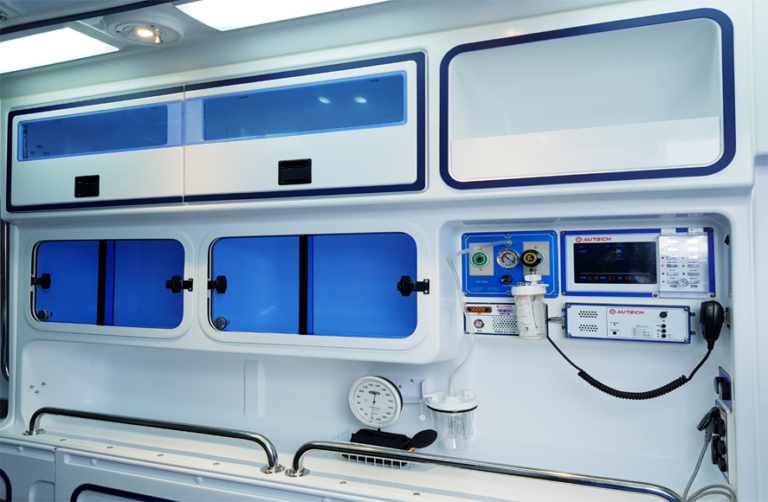

Installation of the upper centralized control panel to control all devices in the patient area in the new rotary emergency rescuer’s seat.

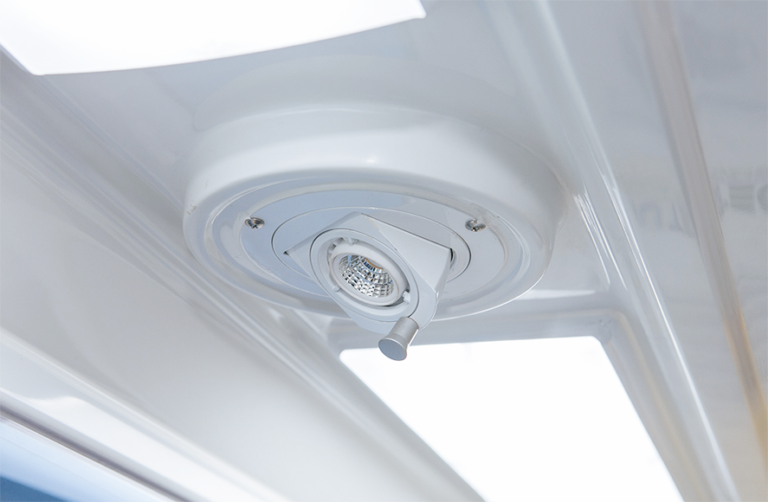

Internal lighting : two levels adjustable and TRA lamp (integrated).

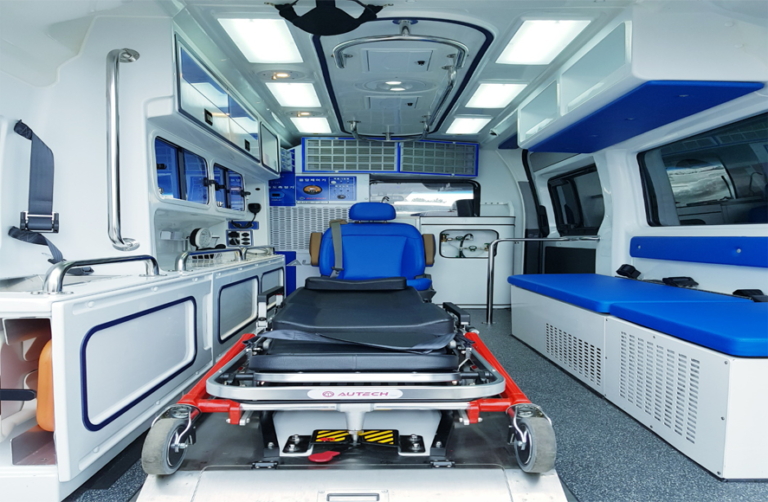

Loading part that can load and lock auxiliary stretcher and step stretcher.

Flush high-brightness LED warning lights and other lighting devices
External fresh air intake : Provides a pleasant indoor environment through
air ventilation at least 12 times per hour in the patient room
Quick and easy response with left, right, and rear LED work lights
The patient area is sealed with special sealing materials and AUTECH’s proprietary technology (full isolation from the driver’s cab and the outside).
“OPEN & ON” system that turns on work lights at the same time
when the rear door is open at night
Surround-view camera (front, back, left/right) : Increases visibility of surroundings when parked or traveling at a low speed
Four types of sirens
Easily enter and exit the vehicle by using the side step and rear step
A/C External power charging

Item	Specification

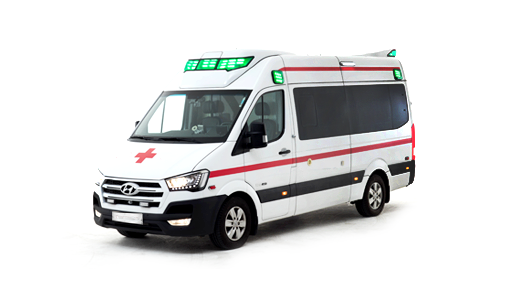

Ambulance Type	Special Ambulance
Number of passenger	5-Seaters
Vehicle gross weight (KG)	3560
Max. Power output (PS/RPM)	170/3300
Car Body Specification (MM)	6370 x 2048 x 2815
Number of cylinder / Total amount of displacement (cc)	4 / 2497
Battery Capacity (AH)	100 x 2EA
WheelBase (MM)	3670
Fuel Tank (L)	75
